Register an RF Gateway

About Registering RF Gateways #

• You will want to connect your gateway to the internet either via Ethernet (recommended) or WiFi in order to register the gateway to your DicksonOne account.
• You’ll need the gateway’s serial number which is found on the back side of the gateway.

Connecting an RF Gateway to the Internet #

Using Ethernet with DHCP (recommended) #

To use the default settings of ethernet and DHCP (or MAC address reservation), follow these steps:

1. Plug the AC adapter and ethernet cable into the device with their respective connections. Alternatively,
   you can use PoE without an AC adapter.
2. The ETH light should start blinking to indicate that there is ethernet activity

We recommend that you review Securing the LoRaWAN RF Gateway to learn about securing the device.

Using WiFi, Static IP address, and/or Proxies #

Configure the gateway to use a static IP address and/or connect it to the internet via WiFi using the following
steps:

1. Power the device using the AC adapter
2. Download the Network Configuration App by going to
   1. Support > Network Configuration App in the DicksonOne interface
   2. Go directly to: https://www.dicksonone.com/network-configuration-app
3. Open Network Configuration App and select “Configure Without Device”
4. Select the connection method (WiFi or Ethernet)
5. Configure your network settings:
   1. For WiFi, provide the necessary settings including network name, security method, and
      passwords
   2. For static IP addresses or proxies, expand the “Configure Advanced Settings” menu and supply
      the appropriate information
6. Click the “Next” button
7. Click the “Save Configuration” button and save the file to a USB flash drive
8. Unplug the USB flash drive from your computer and plug the stick into the USB port on the gateway, waiting approximately 30 seconds for the settings to be loaded and applied

Additional Support
Please visit the Creating WiFi Settings Files to get more help on how to program WiFi using the network configuration app on a USB.

Registering the RF Gateway to DicksonOne #

Register Gateways on DicksonOne #

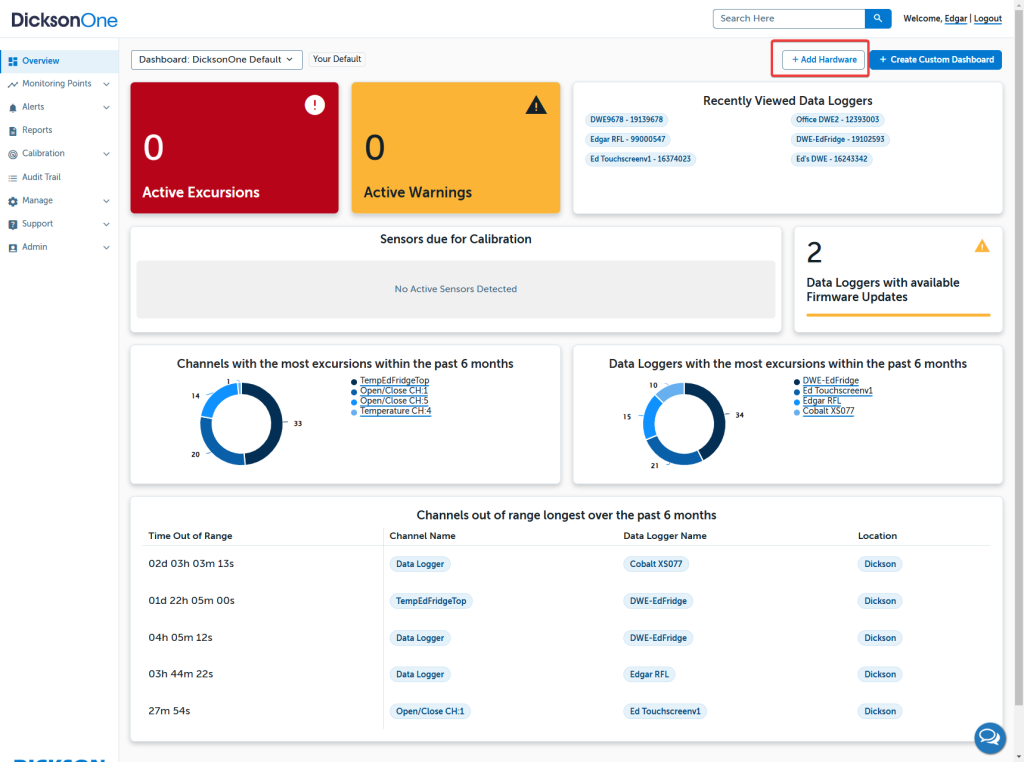

Log into your DicksonOne account and Click +Add Hardware.

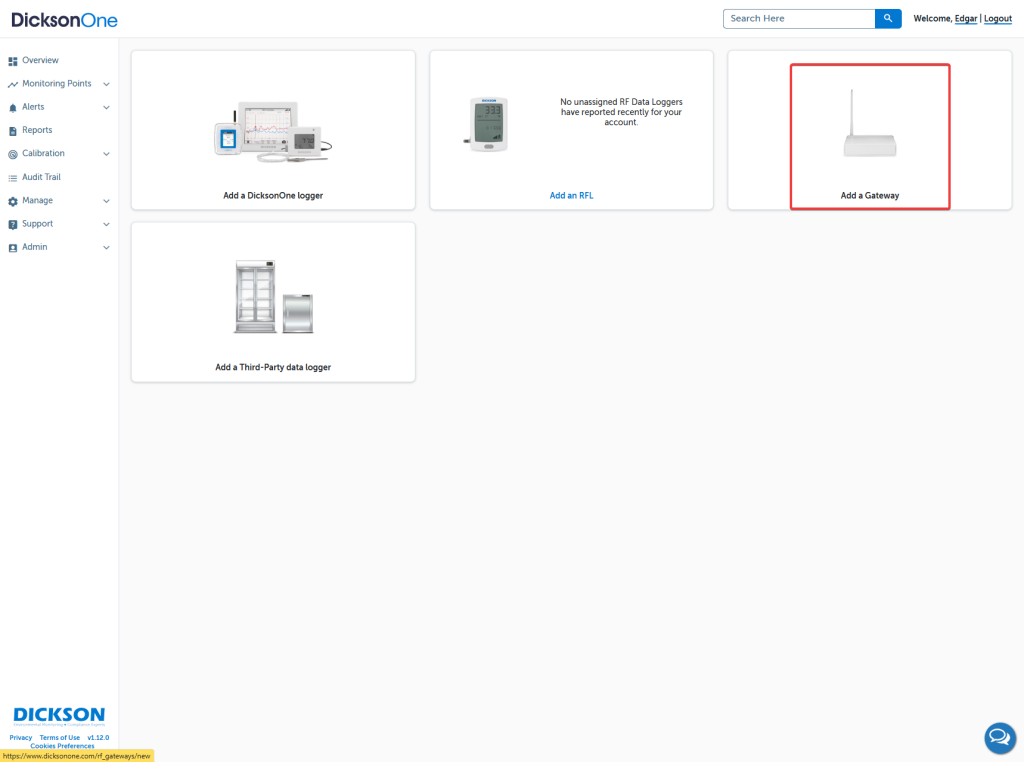

Click Add a Gateway.

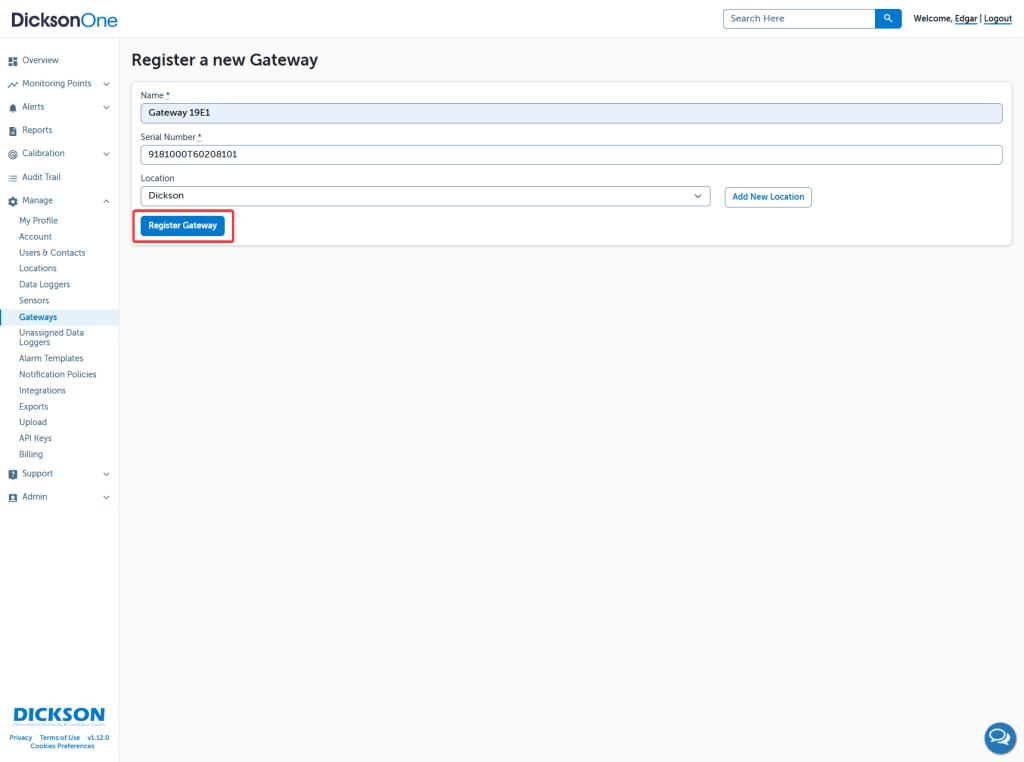

You will want to name your gateway, input the gateway’s serial number, select a location, and then click Register Gateway.

Note
Only individuals with have manage access to the location that the gateway is registered at will be able to view the gateway and review settings.

Manage Gateways #

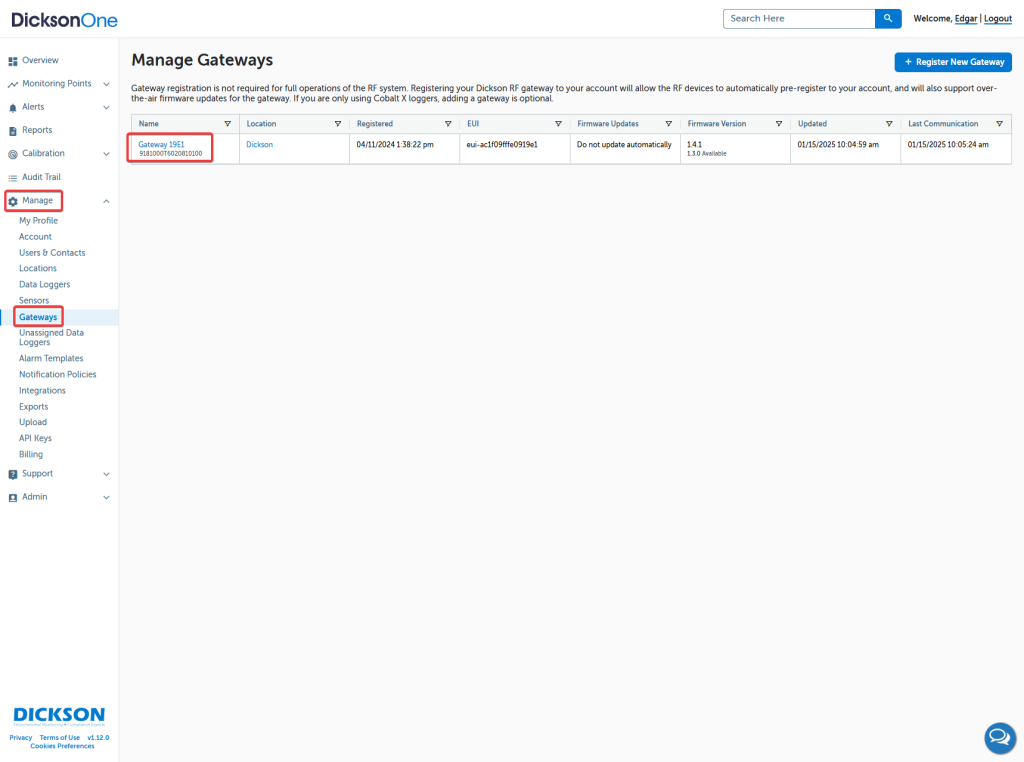

You will then be redirected to the Manage > Gateways page with and a successful banner will flash registering a gateway successfully. On this page, you will be able to review the last time the Gateway communicated to your DicksonOne account and more. Click +Register New Gateway to add more.

You can edit or review gateway information by clicking on the gateway’s name.

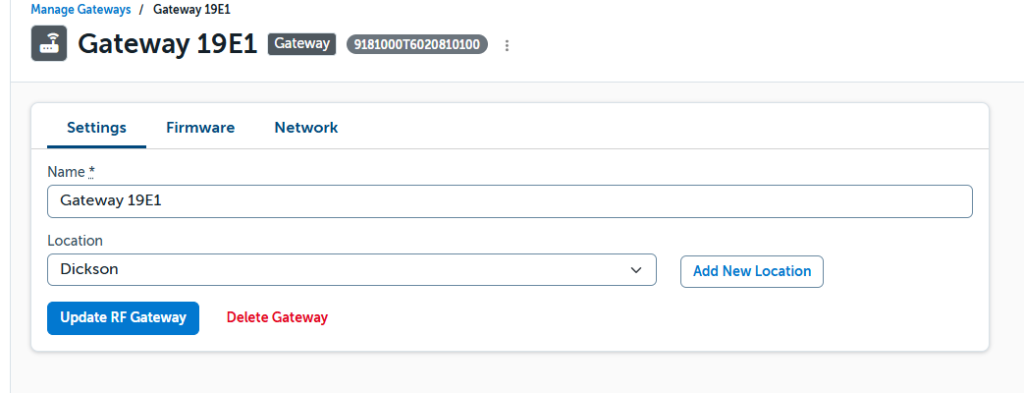

On the gateway’s page, you can edit the name and location, review Firmware settings and Network information.
